TV Line-Belt Conveyor
Radiant Appliances and Electronics Pvt Ltd
Washing Machine Conveyor
Resojet Pvt Ltd
Washing Machine Conveyor
WIPL-NOIDA
65 inch Straight Conveyor (OLED)
Specifications:
Conveyor dimensions:
- Width-990mm
- Height-860mm
- Assembly conveyor – 26.24mtrs
- Adjustment conveyor – 24.10mtrs
- Packing – 9.2mtrs
- Overall Length – 60mtrs
65 inch Straight Conveyor
Specifications:
conveyor dimensions:
- Width:Assy-990mm,Adj-654mm
- Height-860mm
- Assembly conveyor – 26.24mtrs
- Adjustment conveyor – 24.10mtrs
- Packing – 9.2mtrs
- Overall Length – 61mtrs
65 inch U-type Conveyor
Specifications:
Conveyor dimensions:
- Width:Assy-1050mm,Adj-654mm
- Height-860mm
- LCM – 32.05mtrs
- LCM booth 10k structure – 15.5mtrs
- Transfer conveyor – 7.05mtrs
- Assembly conveyor – 27.3mtrs
- Adjustment conveyor – 21.5mtrs
- Packing – 10.5mtrs
- Overall Length – 99mtrs
75 inch U-type Conveyor
Specifications:
Conveyor dimensions:
- Width:Assy-1150mm,Adj-654mm
- Height-860mm
- LCM – 33mtrs
- LCM booth 10k structure – 17mtrs
- Transfer conveyor – 11mtrs
- Assembly conveyor – 37mtrs
- Adjustment conveyor – 25mtrs
- Packing – 12.5mtrs
- Overall Length -120Mtrs
49 inch Straight Conveyor
Specifications:
Conveyor dimensions:
- Width:Assy-900mm,Adj-580mm
- Height-860mm
- LCM – 15.46mtrs
- LCM booth 10k structure – 10.14mtrs
- Assembly conveyor – 21.86mtrs
- Adjustment conveyor – 14mtrs
- Packing – 8.6mtrs
- Overall length – 60mtrs
43 inch Straight Conveyor
Specifications:
Conveyor dimensions:
- Width:Assy-900mm,Adj-580mm
- Height-860mm
- LCM – 15.46mtrs
- LCM booth 10k structure – 10.14mtrs
- Assembly conveyor – 21.86mtrs
- Adjustment conveyor – 14mtrs
- Packing – 8.6mtrs
- Overall length – 60mtrs
LCM-in House Development
Specifications:
- Profile 45x45mm
- ESD Curtain 1mm Thickness
- 4.8m(W)X2.7m(H)X17m(L)

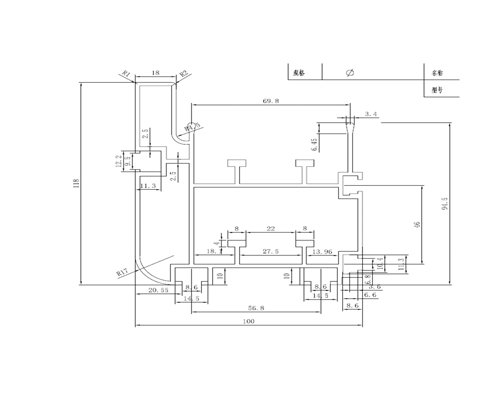

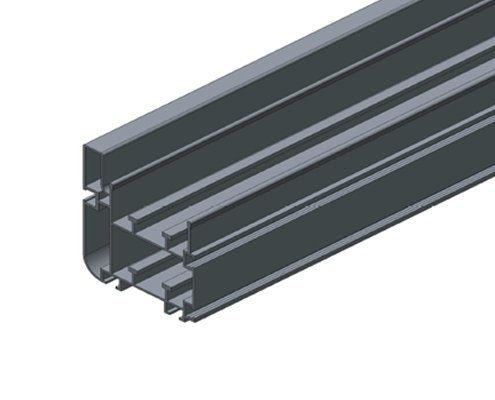

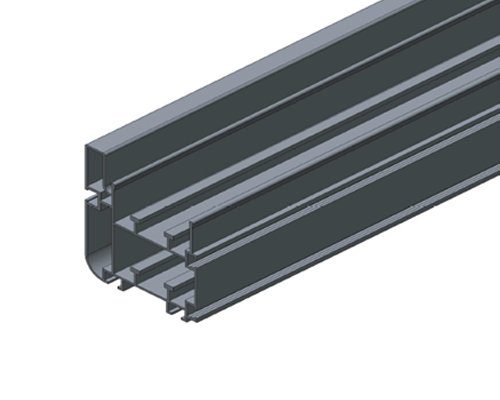

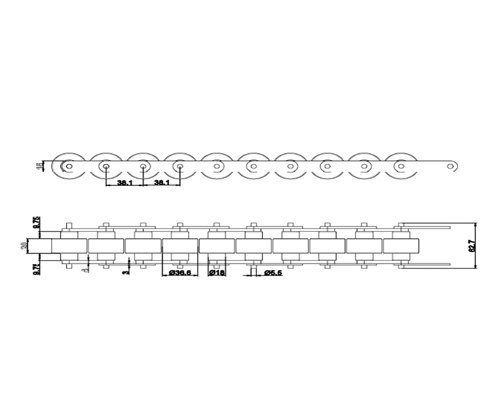

Conveyor Chain Profile and Chain Drawing
Specifications:
- Chain Profile 38.1 pitch

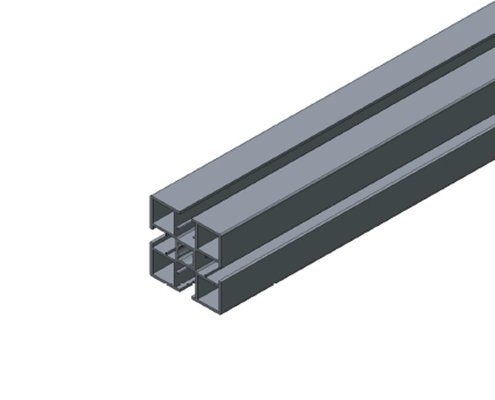

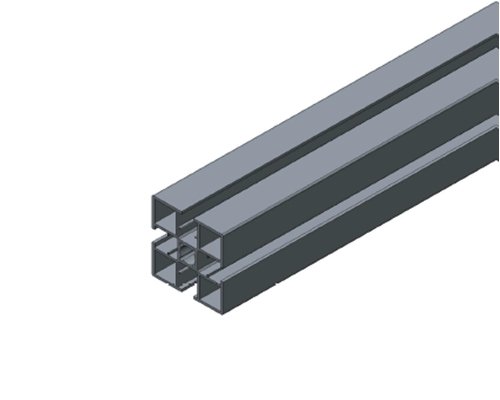

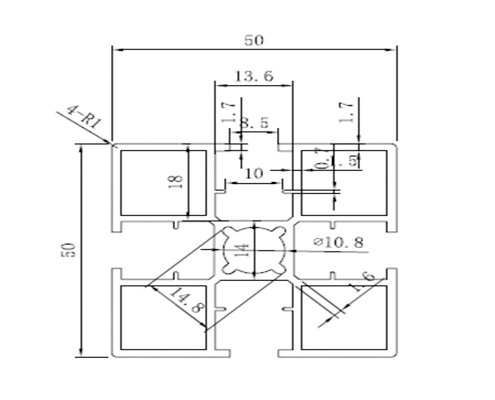

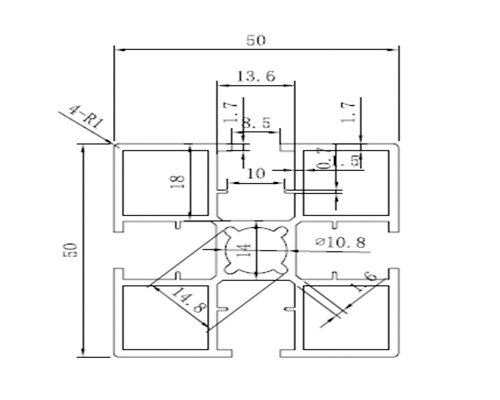

Conveyor Support Profile
Specifications:
- 50×50 profile
Conveyor in-house Development
TV Line Conveyor
CTTI
